Anti-fog agent resisting abrasionMODIPER® H series
Introduction of MODIPER® H series

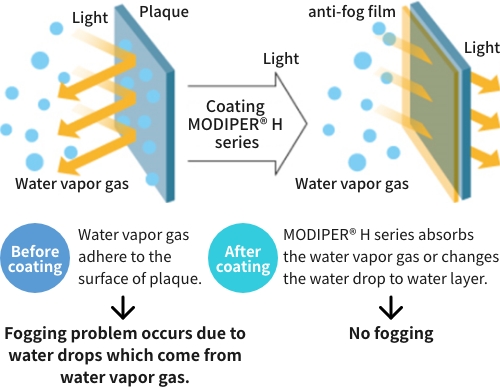

- MODIPER® H series has excellent anti-fog property.
- MODIPER® H series has also abrasion property.
- MODIPER® H series has excellent repeatability as well as durability of anti-fog property.
- MODIPER® H series consist of 2 types, UV curing type and thermal curing type, depending on their curing system.
Property of MODIPER® H series
Basic properties of MODIPER® H series
Film properties of representative MODIPER® H series
| Test Item（Test Condition） | Thermal curing system | Thermal curing system | UV curing system |
|---|---|---|---|
| MODIPER® HM100 | MODIPER® H2000 | MODIPER® H1100 | |
| Anti-fog mechanism | Water layer type | Water layer type | Water absorption type |
| Anti-fog property(Exposure to 35 ℃ steam for 5 min) | ✔ | ✔ | ✔ |
| Anti-fog property(Exposure to 80 ℃ steam for 10 sec) | ✔ | ✔ | × |
| Anti-fog property after washing(Exposure to 35 ℃ steam for 5 min after washing) | × | ✔ | ✔ |
| Abrasion property(Steel wool “#0000” 500g×10 times) | × | ✔ | ✔ |
| Heat resistance property(80℃ for 10 days)(Evaluate appearance) | ✔ | ✔ | ✔ |
| Humidity resistance property(60℃*95%RH for 10 days)(Evaluate appearance) | ✔ | ✔- | ✔ |
✔：Excellent,
✔-：Good,
×：Fail

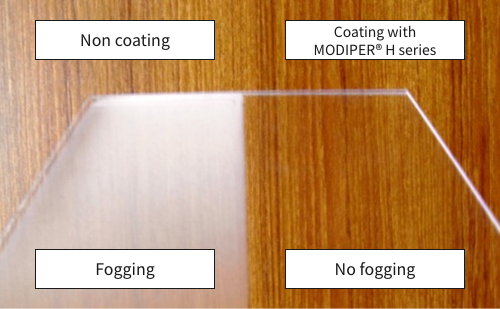

Anti-fog property
exposure to steam at 35°C

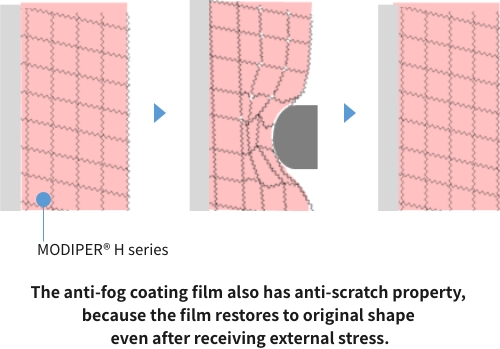

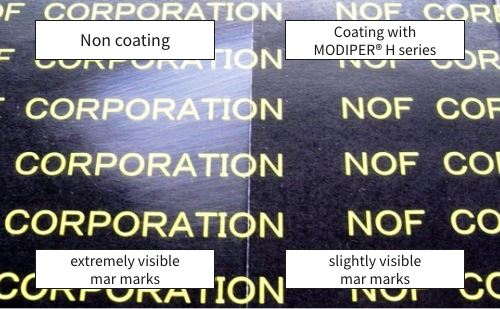

Anti-mar property
