Adhesion to other resins

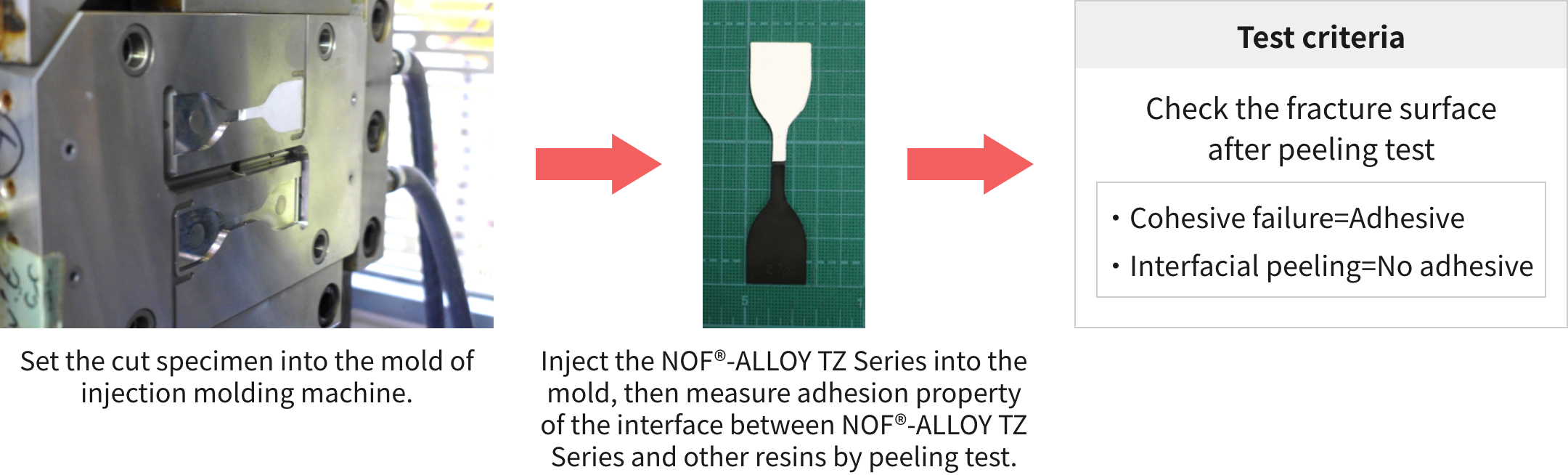

Test method
- 1. Cut the dumbbell test specimen in half.
- 2. Set the cut specimen into the mold of injection molding machine.
- 3. Inject the NOF®-ALLOY TZ series into the mold, then measure adhesion property of the interface between NOF®-ALLOY TZ Series and other resins by peeling test.

Test results
NOF®-ALLOY TZ series can adhere to other resins such as PP, ABS, PC and PBT, so that NOF®-ALLOY TZ series can be used for two shot color molding parts.
Counter material | NOF®-ALLOY TZ330 series | NOF®-ALLOY TZ660 series |
---|---|---|
PP | Adhesion | Non adhesion |
ABS | Non adhesion | Adhesion |
PC | Non adhesion | Adhesion |
PC/ABS | Non adhesion | Adhesion |
PBT | Non adhesion | Adhesion |
